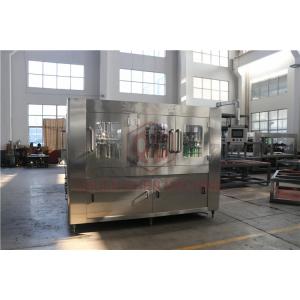

Hot Temperature Juice Bottle Washing Filling Capping Machine 85 Degrees Celsius
Production line
| The juice production line from A to Z | |
| a, Water treatment system | a-a, Pretreatment |
| b, Juice processing system | b-a, Syrup melting |
| c, Juice filling system | c-a, Bottle washing |
| d, Bottled juice pasteurizer | d-a, Warming tunnel |
| e, Bottled drink packing machine | e-a, Labeling machine |
Machine description
Adopting the bottle bottom holding type to send bottles into filling machine through bottle inlet screw via thrum bottle star wheel, and then the bottles will be held by lifting device, and achieve up and down under the function of lifting cam and down pressure cam. The filling model is precisely filling. After bottle mouth raises to contact valve and open valve, then starting to filling; when finish filling, the bottle mouth falls and leaves valve, also bottle is leading-out filling machine by bottle holding type, and conveyed to convey chain by thrum bottle star wheel.
Characters
1. This juice filling machine has a compact structure,perfect control system,easy to operate and highly automated.
2. The parts contact with filling machine is made of quality SUS, anti-corrosive, and easy to clean.
3. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
4.Only by changing the bottle block, star-wheel, can realize to fill the changed bottle shape.
5. The filling machine adopts perfect overload protective device can ensure the operator and machine safe.
6. This machine adopts frequency converter, which can adjust the capacity suitably.
7. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
8.The control system has many functions, such as control producing speed, and production counting etc.
9.The electric components and pneumatic components are all introduced from world famous brand products.
Technical specification
| Model | RCGF8-8-3 | RCGF14-12-5 | RCGF16-16-5 | RCGF24-24-6 |
| Capacity | 2000BPH | 5000BPH | 8000BPH | 12000BPH |
| Washing head | 8 | 14 | 16 | 24 |
| Filling head | 8 | 12 | 16 | 24 |
| Capping head | 3 | 5 | 5 | 6 |
| Suitable bottle | PET bottle, plastic bottle | |||
Diameter of | 55-110mm | |||
| Height of bottle | 150-310mm | |||
| Suitable cap | Plastic screw cap | |||
| Weight | 1500kg | 2000kg | 4000kg | 4500kg |
| Main motor power | 1.2kw | 1.5kw | 3kw | 3kw |
FAQ
Q1 :Is there other filling capacity can be choosen?
A1:Yes, certainly. We can customize it for you according to your bottle size and filling volume.
Q2:Product Production, Sourcing and Price
A2:Professional production, quality assurance and affordable welcome to inquire. All products are factory direct sales, looking forward to building cooperate with you wholeheartedly!
Q3: Related Paramenters Products
A3:The above parameters are for reference. Because the type and styles is so many, so we can only provide for one model for your reference, if the part of our parameters can not meet your needs, please contact me directly, we would be quickly to answer your question.
Q4:How is the scope of the export ?
A4:Our business involves various markets all over the world and in many fields. Most parts is adopted with our excellent product profermance.
Detailed photo for ref
